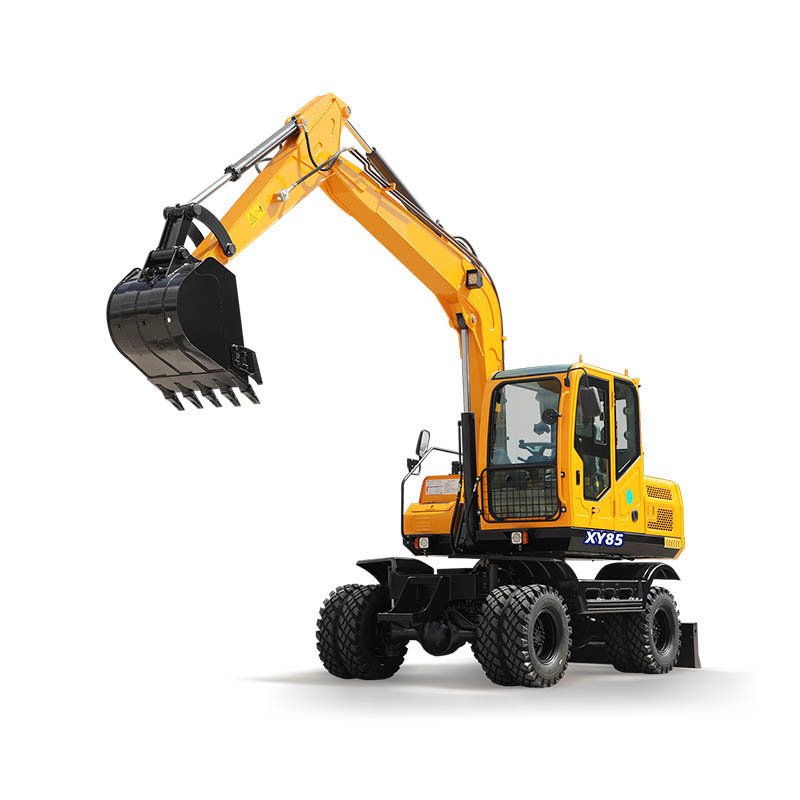

XY85G4 wheeled excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	3720mm
Arm length	1850mm
Maximum digging reach	6700mm
Maximum digging depth	4200mm
Maximum digging force	45KN
Maximum digging height	6930mm
Maximum dumoing height	5300mm
Back-end radius of gyration	1920mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	655021003100mm
Axle base	2400mm
Track gauge	1660mm/1580mm
Ground clearance of counterweight	1100mm
Min ground clearance	≥285mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	7850kg
Engine model	YUCHAI(IV)
Rated power	55.8kw
Rated speed	2200r/min
Hydraulic system working pressure	25Mpa
Hydranlic system flow	170L/min
Variable piston pump	85ml/r
Walking speed(高速/低速)(High speedlow speed)	30km/h
Max hauling force	60KN
Grade climbing ability	58%/30°
Volume of bucket	0.31m3
Revolution overdrive pressure	20Mpa
Fqt fuel quantity	≥4L/h
Capacity of the fuel tank	150L
Hydraulic tank capacity	110L
轮胎型号	8.25-16
Full circle swinging time	5.5s
