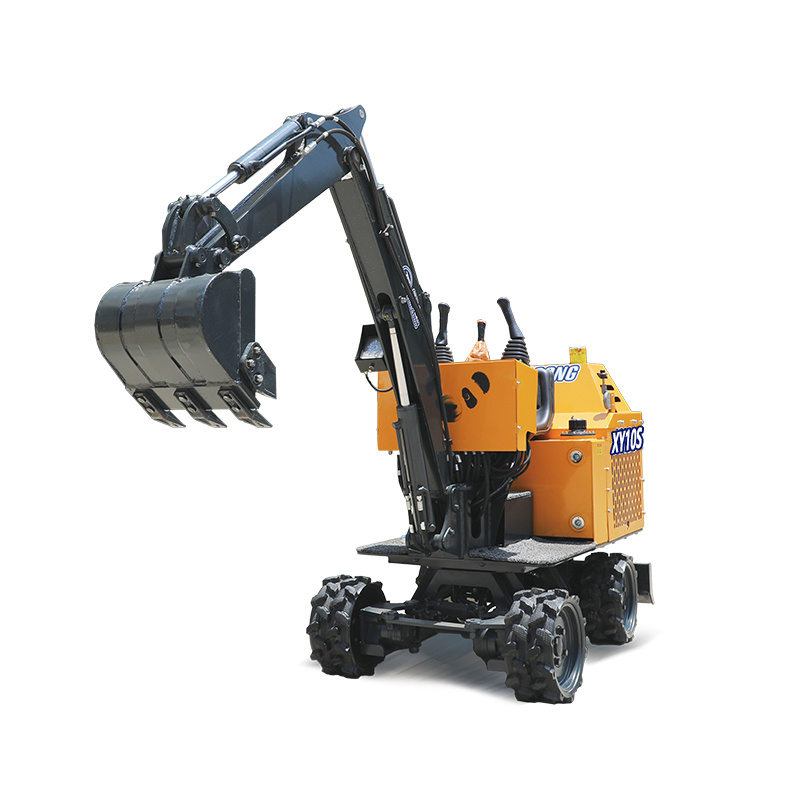

XY10S wheeled excavator

XY10S wheeled excavator

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}
Product Details Attribute

Excavators are widely used in road construction, mining, agricultural and forestry clamping, water conservancy and electric power construction, bridge construction, urban construction, municipal construction and pipeline laying and other projects in the excavation of earth and stone, loading and unloading operations.



Serial Number

Model

Technical Parameters

Main Configuration

Optional Devices

Market Guidance Price (￥)

1

XY10S Tire-type Excavator

1. Maximum digging radius: 3000mm

2. Maximum digging depth: 1270mm

3. Maximum digging force: 5KN

4. Maximum digging height: 2830mm

5. Maximum unloading height: 1990mm

6. Minimum turning radius: 1390mm

7. Transportation status (length*width*height): 2870*1000*1350mm

8. Wheelbase: 1000mm

9. Track width (front/rear): 1000mm

10. Rotation angle: 360°

11. Total weight: 1000kg

12. Rated power/speed: 12kw/3000r

13. Hydraulic system working pressure: 16Mpa

14. Hydraulic system flow rate: 50L/min

15. Variable piston pump: 18ml

16. Maximum travel speed: 5km/h

17. Climbing ability: 30°

18. Tire diameter: 390mm

19. Bucket capacity: 0.03m³

20. Fuel tank capacity: 23L

21. Hydraulic oil tank capacity: 18L

1. Engine:

KEPU

12kw/3000r

2. Hydraulic piston pump:

TAIFENG TFA10VO18

3. Load sensitive valve:

TAIFENG TFS10-09

4. Rotary motor:

BM250

5. Walking system:

Four-wheel drive motor

Tire model 4.00*8

6. Working device:

Boom length: 1336mm

Stick length: 826mm

Bucket width: 360mm

Rock breaker;

Clamp;

Dozer;


RANGE OF OPERATION
Maximum digging depth 1270mm
Maximum digging force 5KN
Maximum digging height 2830mm
Maximum dumoing height 1990mm
Maximum digging radius 3000mm
Minimum turning radius 1390mm
DIMENSIONS
(Length*width*height)Transport dimensions 2870*1000*1350mm
Axle base 1000mm
Track gauge 1000mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation 360°
Machine weight 1000kg
Rated power 12kw/3000r
Hydraulic system working pressure 16Mpa
Hydranlic system flow 50L/min
Variable piston pump 18ml
Walking speed(高速/低速)(High speedlow speed) 5km/h
Grade climbing ability 30°
Volume of bucket 0.03m³
Capacity of the fuel tank 23L
Hydraulic tank capacity 18L
Tire diameter 390mm
