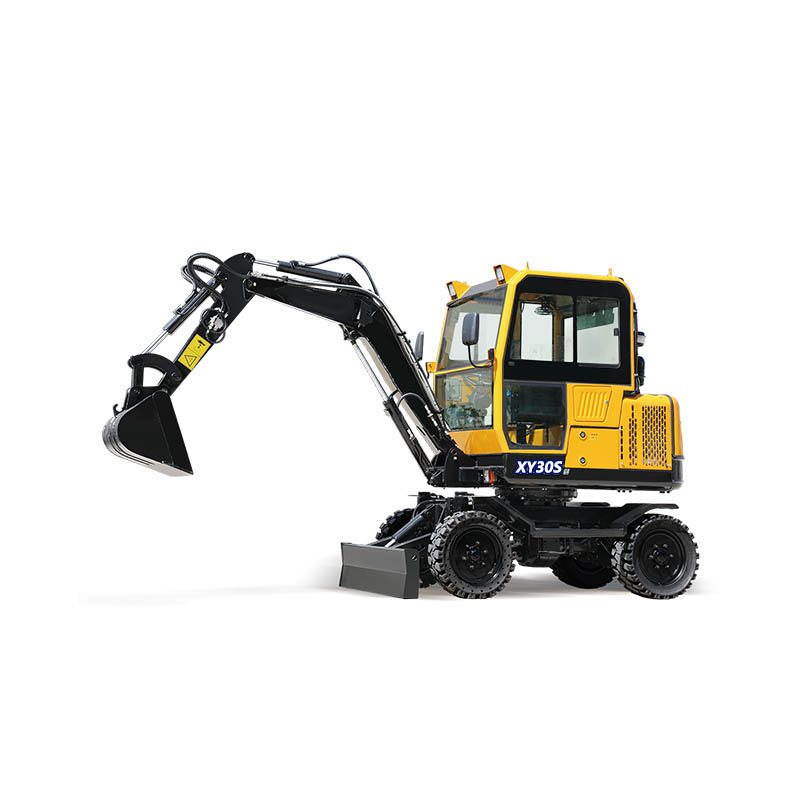

XY30SG4 Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	2000mm
Arm length	1150mm
Maximum digging reach	4100mm
Maximum digging depth	2060mm
Maximum digging force	15KN
Maximum digging height	4140mm
Maximum dumoing height	2940mm
Back-end radius of gyration	1150mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	420015002560mm
Axle base	1500mm
Track gauge	1115mm/1115mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	2500kg
Engine model	新柴(国IV)
Rated power	20.6kw
Rated speed	2200r/min
Hydraulic system working pressure	16Mpa
Hydranlic system flow	56L/min
Variable piston pump	28m/r
Walking speed(高速/低速)(High speedlow speed)	12km/h
Volume of bucket	0.08m³
Revolution overdrive pressure	16Mpa
Capacity of the fuel tank	45L
Hydraulic tank capacity	45L
轮胎型号	700-16
Full circle swinging time	6s
