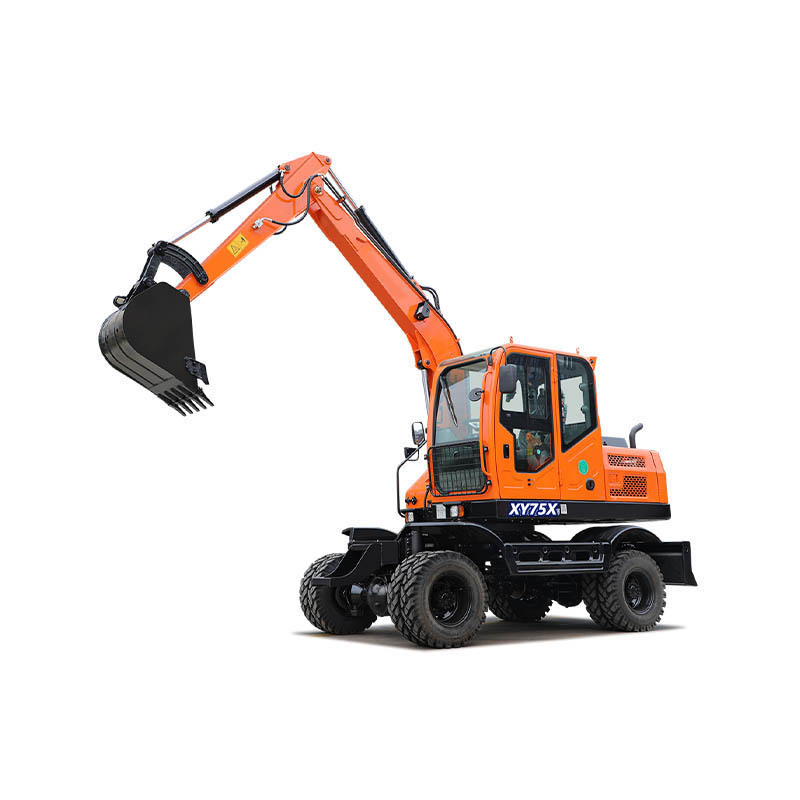

XY75X-9G4 Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	3300mm
Arm length	1850mm
Maximum digging reach	6400mm
Maximum digging force	3300mm
Maximum digging height	6800mm
Maximum dumoing height	4900mm
Back-end radius of gyration	1980mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	580021002900mm
Axle base	2400mm
Track gauge	1660mm/1580mm
Ground clearance of counterweight	1060mm
Min ground clearance	≥250mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	7000kg
Engine model	YUCHAI(IV)
Rated power	36.8kw
Rated speed	2200r/min
Hydraulic system working pressure	25Mpa
Hydranlic system flow	150L/min
Variable piston pump	72ml/r
Walking speed(高速/低速)(High speedlow speed)	25km/h
Max hauling force	45KN
Grade climbing ability	58%/30°
Volume of bucket	0.25m3
Revolution overdrive pressure	20Mpa
Fqt fuel quantity	≥4L/h
Capacity of the fuel tank	130L
Hydraulic tank capacity	110L
轮胎型号	7.50-16
Full circle swinging time	5.5s
