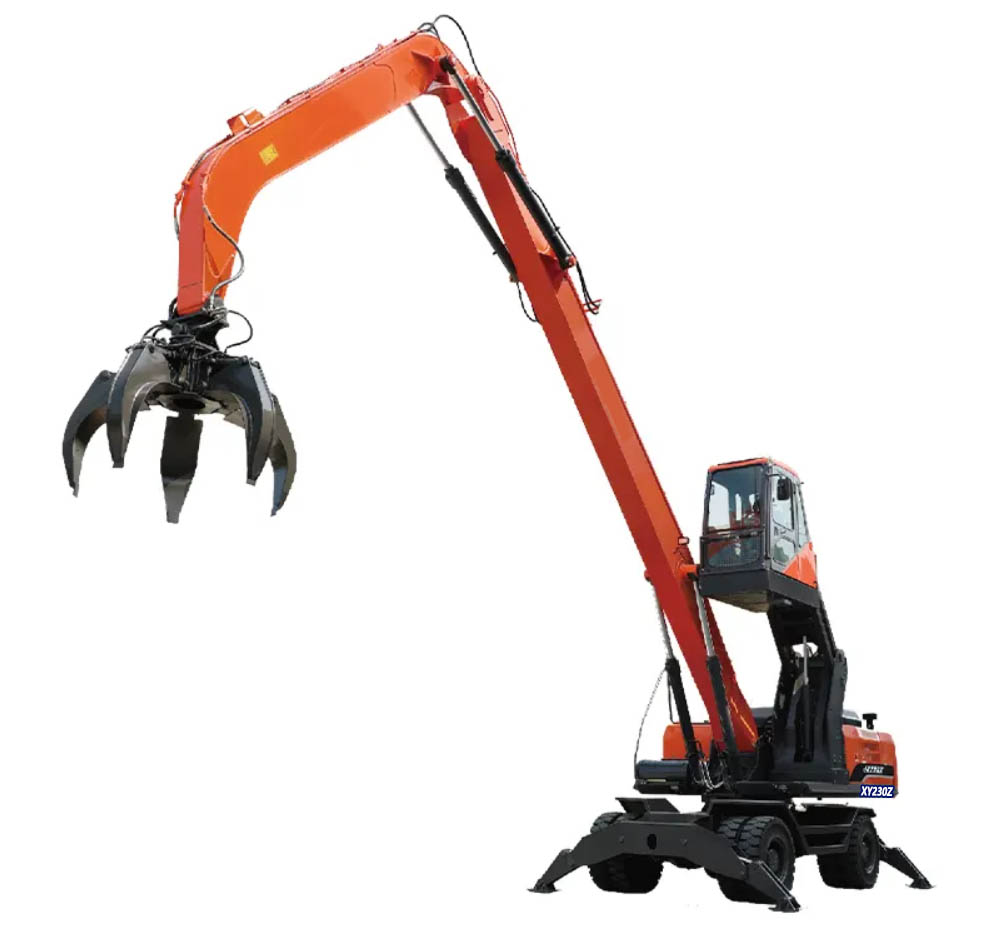

XY230Z Wheel-Mounted Extended Boom Grabber

Working Range

Boom Length: 5700~10000mm

Boom Length: 3500~5000mm

Unloading Height: 5500~12750mm

Maximum Clamping Distance: 7900~13900mm

Cabin Lifting Height: 1800~2500mm

Rear Turning Radius: 2800~3500mm

Overall Dimensions

(Total Length * Total Width * Total Height) Transport Mode: 13850*3000*3500mm

Wheelbase: 2800~3300mm

Wheel Track (Front/Rear): 1930mm/1930mm

Counterweight Ground Clearance: 1350mm

Minimum Ground Clearance: 400mm

Four-Petal Clamp Parameters

Rotation Angle: 360°

Total Clamp Weight: 760Kg

Maximum Opening Diameter: 1530mm

Closed Diameter: 880mm

Technical Parameters

Rotation Angle 360°

Total weight: 22000~26500kg

Engine model: Cummins (National Standard I, Sichuan)

Rated power: 124KW

Rated speed: 2050r/min

Hydraulic system working pressure: 32Mpa

Hydraulic system flow rate: 450L/min

Maximum driving speed: 25km/h

Fuel capacity: >12L/h
