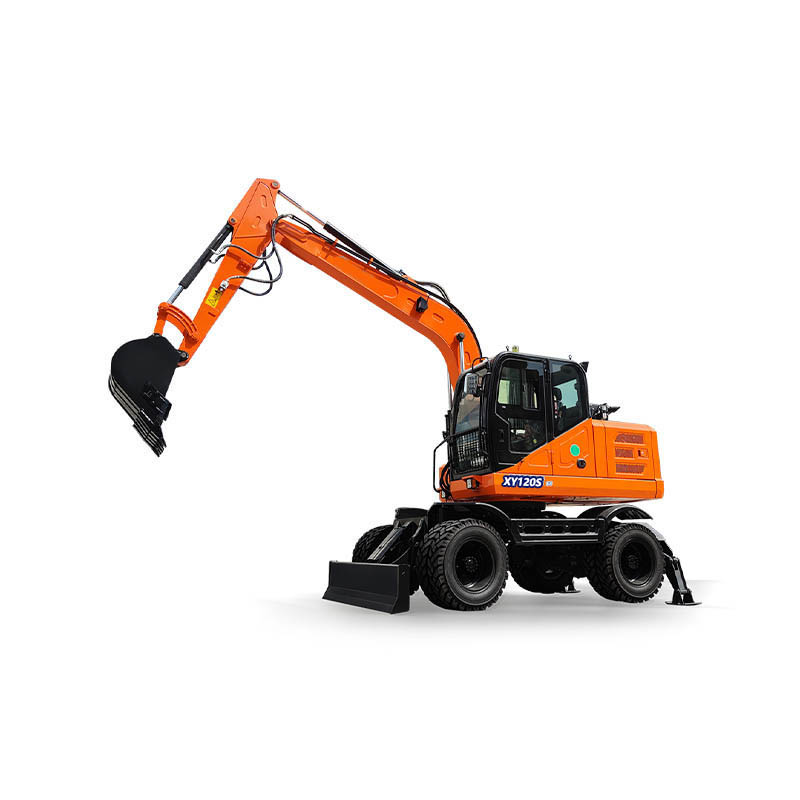

XY120SG4 Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	4000mm
Arm length	2000mm
Maximum digging reach	7100mm
Maximum digging depth	4700mm
Maximum digging force	45KN
Maximum digging height	7100mm
Maximum dumoing height	4600mm
Back-end radius of gyration	2400mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	690023003040mm
Axle base	2400mm
Track gauge	1830mm/1740mm
Ground clearance of counterweight	1280mm
Min ground clearance	≥230mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	9000kg
Engine model	YUCHAI(IV)
Rated power	66kw
Rated speed	2200r/min
Hydraulic system working pressure	28Mpa
Hydranlic system flow	200L/min
Variable piston pump	95ml/r
Walking speed(高速/低速)(High speedlow speed)	28km/h
Max hauling force	60KN
Grade climbing ability	58%/30°
Volume of bucket	0.31m3
Revolution overdrive pressure	20Mpa
Fqt fuel quantity	≥5L/h
Capacity of the fuel tank	150L
Hydraulic tank capacity	110L
轮胎型号	825-20
