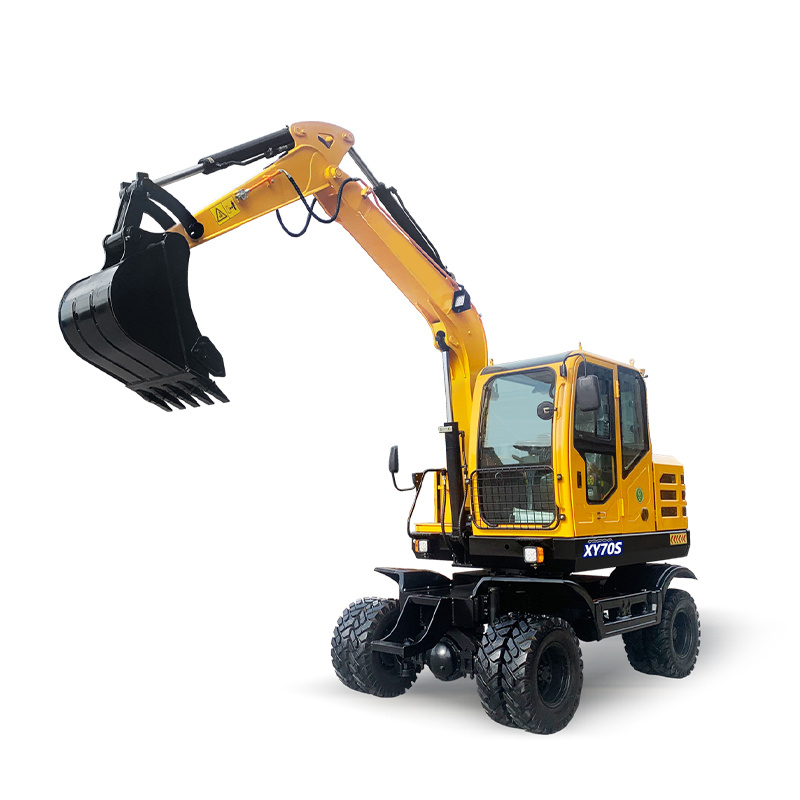

XY70S Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Technical Parameters of XY70SG4 Wheel Excavator Performance Parameters of XY70SG4 Wheel Excavator
Range of operation
Boom length	3030mm
Arm length	1600mm
Max. working radius	5950mm
Min. turning radius	1930mm
Max. digging depth	3480mm
Maximum vertical digging depth	3000mm
Max. digging height	6310mm
Max. dumping height	4510mm
Back-end radius of gyration	1700mm
Dimensions
(Lengthwidthheight) Transport Dimensions	5700mm1990mm2850mm
Axle base	2200mm
Wheel base	1560mm
Tire width	1980mm
Min ground clearance	220mm
Ground clearance of counterweight	1070mm
Tech performance and specification
Angle of rotation	360°
Machine weight	6000kg
Engine brand	XINCHAI National IV
Rated Power	36.8kW/2200r/min
Rotary speed	10r/min
Walking speed	28km
Climbing ability (%)	58% 30°
Max. digging force	40KN
Rated Bucket Capacity	0.23m³
Hydraulic system flow	160L/min
Hydraulic system pressure	25Mpa
Fuel tank volume
Fuel tank (L)	130L
Hydraulic oil tank (L)	90L

RANGE OF OPERATION
Boom length	3030mm
Arm length	1600mm
Maximum digging depth	3480mm
Maximum digging force	40KN
Maximum digging height	6310mm
Maximum dumoing height	4510mm
Maximum digging radius	5950mm
Minimum turning radius	1930mm
Maximum vertical digging depth	3000mm
Back-end radius of gyration	1700mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	5700mm1990mm2850mm
Axle base	2200mm
Track gauge	1560mm
Ground clearance of counterweight	1070mm
Min ground clearance	220mm
Tire width	1980mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	6000kg
Engine model	新柴XINCHAI 国Ⅳ
Rated power	36.8kW/2200r/min
Hydraulic system working pressure	25Mpa
Hydranlic system flow	160L/min
Walking speed(高速/低速)(High speedlow speed)	28km
Grade climbing ability	58%/30°
Volume of bucket	0.23m³
Capacity of the fuel tank	130L
Hydraulic tank capacity	90L
Full circle swinging time	10r/min
