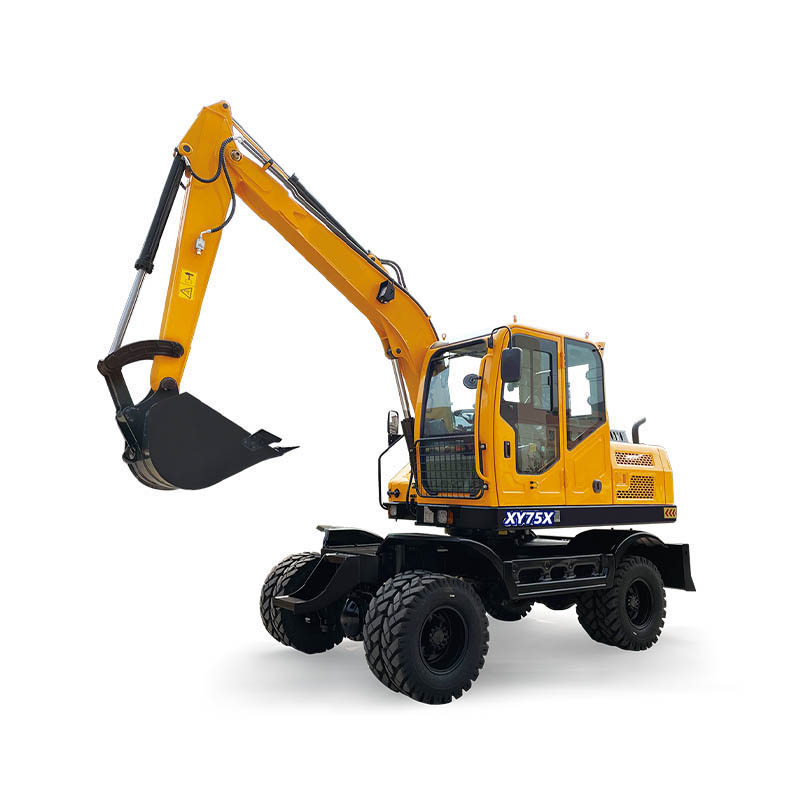

XY75XG4 Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	3300mm
Arm length	1850mm
Maximum digging reach	6400mm
Maximum digging depth	3300mm
Maximum digging force	45KN
Maximum digging height	6700mm
Maximum dumoing height	4950mm
Back-end radius of gyration	1820mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	580021002900mm
Axle base	2400mm
Track gauge	1660mm/1580mm
Ground clearance of counterweight	1060mm
Min ground clearance	≥250mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	6600kg
Engine model	YUCHAI(IV)
Rated power	55.8kw
Rated speed	2200r/min
Hydraulic system working pressure	21Mpa
Hydranlic system flow	120L/min
Variable piston pump	34ml/r
Walking speed(高速/低速)(High speedlow speed)	25km/h
Max hauling force	45KN
Grade climbing ability	58%/30°
Volume of bucket	0.27m3
Revolution overdrive pressure	20Mpa
Fqt fuel quantity	≥4L/h
Capacity of the fuel tank	130L
Hydraulic tank capacity	110L
轮胎型号	7.50-16
Full circle swinging time	6s
Displacement gear pump	25ml/r
