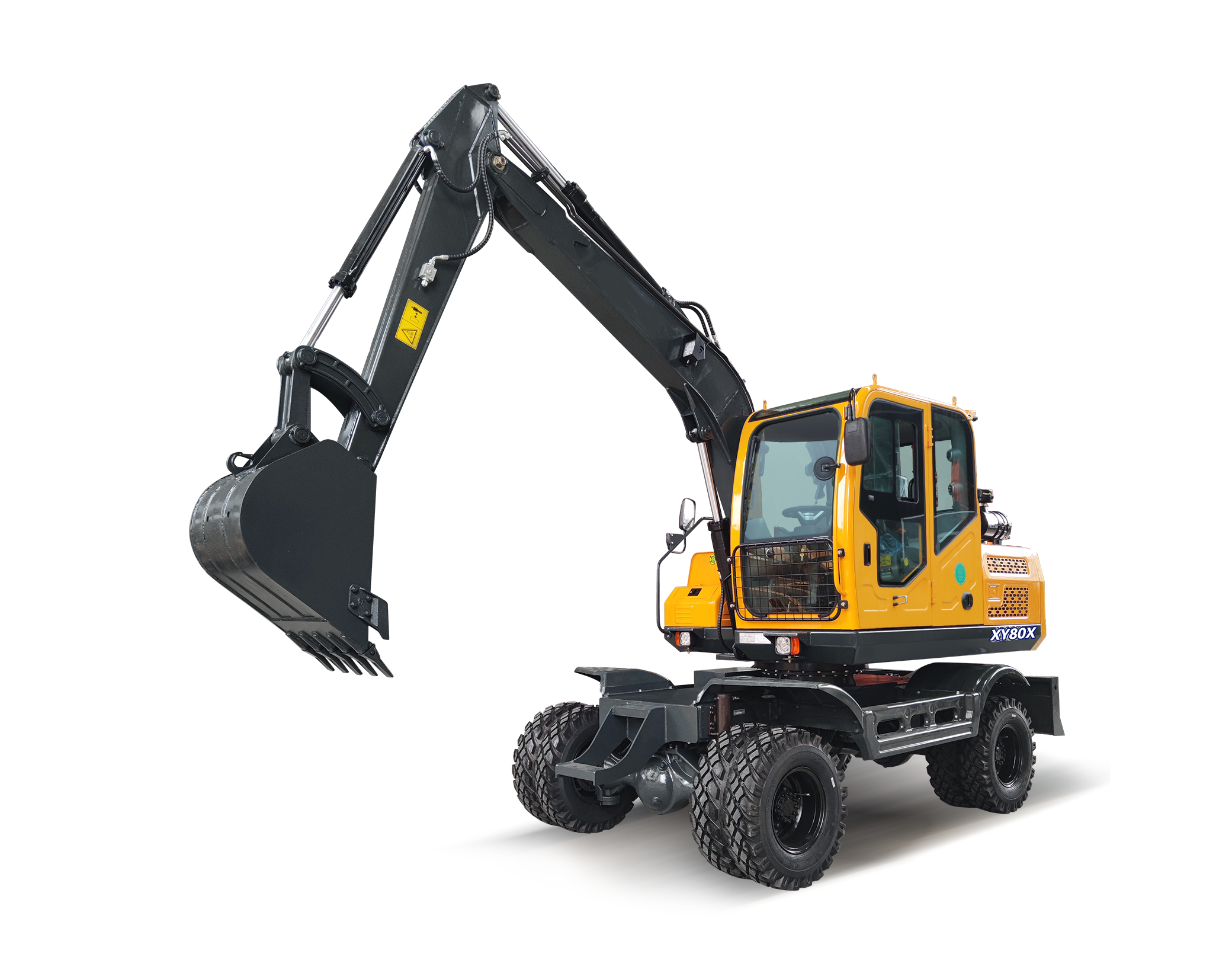

XY80X Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	3300mm
Arm length	1850mm
Maximum digging reach	6120mm
Maximum digging depth	3250mm
Maximum digging force	45KN
Maximum digging height	6800mm
Maximum dumoing height	4750mm
Back-end radius of gyration	1940mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	594021002970mm
Axle base	2500mm
Track gauge	1660mm
Ground clearance of counterweight	1130mm
Min ground clearance	≥210mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	7000kg
Engine model	YUCHAI(IV)
Rated power	36.8kw
Rated speed	2200r/min
Hydraulic system working pressure	25Mpa
Hydranlic system flow	170L/min
Variable piston pump	85ml/r
Walking speed(高速/低速)(High speedlow speed)	28km
Max hauling force	50KN
Grade climbing ability	58%/30°
Volume of bucket	0.27m3
Revolution overdrive pressure	20Mpa
Fqt fuel quantity	ML
Capacity of the fuel tank	150L
Hydraulic tank capacity	110L
轮胎型号	8.25-16
