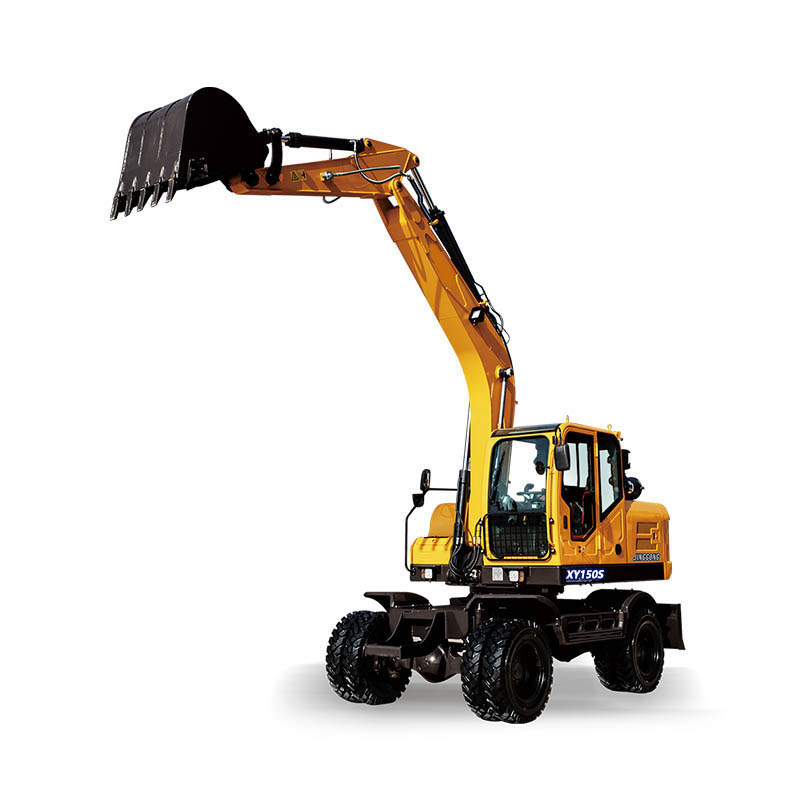

XY150SG4 Wheeled Excavator

Quantity:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

RANGE OF OPERATION
Boom length	4000mm
Arm length	2000mm
Maximum digging reach	7350mm
Maximum digging depth	4300mm
Maximum digging force	60KN
Maximum digging height	6945mm
Maximum dumoing height	5300mm
Back-end radius of gyration	2100mm
DIMENSIONS
(Lengthwidthheight)Transport dimensions	705023302980mm
Axle base	2600mm
Track gauge	1930mm/1830mm
Ground clearance of counterweight	1210mm
Min ground clearance	≥440mm
TECH PERFORMANCE AND SPECIFICATION
Angle of rotation	360°
Machine weight	11000kg
Engine model	YUCHAI(IV)
Rated power	81kw
Rated speed	2200r/min
Hydraulic system working pressure	28Mpa
Hydranlic system flow	220L/min
Variable piston pump	110ml/r
Walking speed(高速/低速)(High speedlow speed)	28km/h
Max hauling force	60KN
Grade climbing ability	58%/30°
Volume of bucket	0.46m3
Revolution overdrive pressure	28Mpa
Fqt fuel quantity	≥5L/h
Capacity of the fuel tank	200L
Hydraulic tank capacity	150L
轮胎型号	825-20
