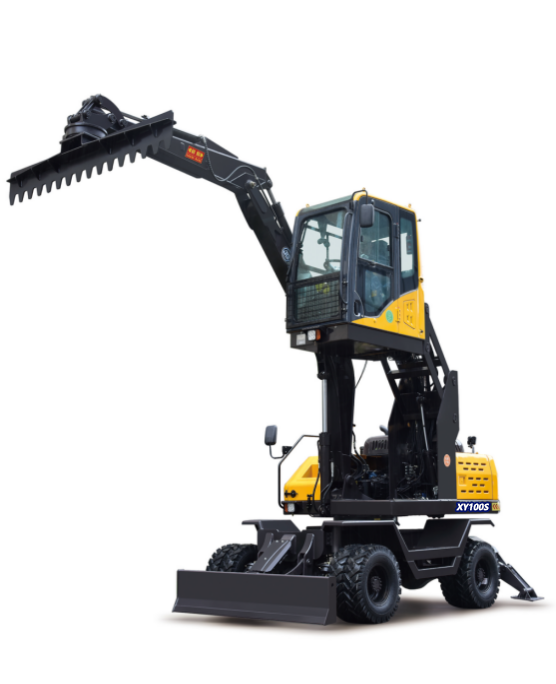

XY100S Railway Leveling Machine

Working Range

Boom Length

3680mm

Boom Length

2000mm

Cab Lifting Height

1800mm

Leveler Width

2500mm

Maximum Leveling Height

4450mm

Rear Turning Radius

1980mm

Overall Dimensions

(Total Length * Total Width * Total Height) in Transport State

6100 * 2500 * 3100mm

Wheelbase

2400mm

Wheel Track (Front/Rear)

185 0mm/1750mm

Counterweight Ground Clearance

1150mm

Minimum Ground Clearance

350mm

Technical Performance Parameters

Rotation Angle

360°

Total Weight

8500kg

Engine Model

Yuchai (National III)

Rated Power

62.5KW

Rated Speed

2200r/min

Maximum Speed

25km/h

Grading Gradient

58%/30°

Tire Size

8.25-16

Note: Product parameters are subject to the actual product. The company reserves the right of final interpretation.
