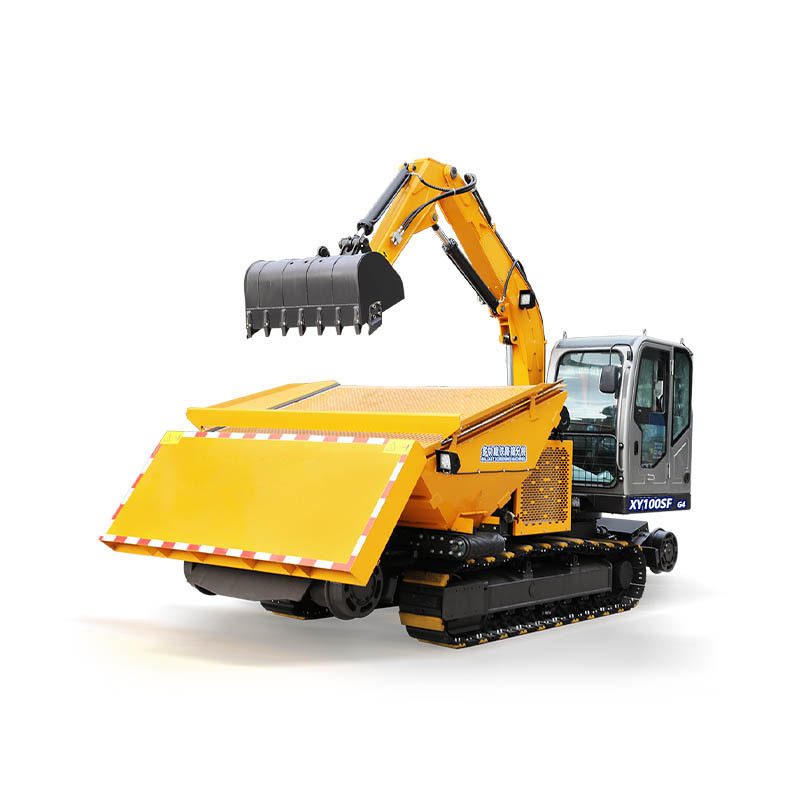

XY100SFG4 Railway Screening Machine

Screening Bucket Mechanism

Maximum Digging Radius: 5200mm

Maximum Digging Depth (below track): 2200mm

Maximum Digging Force: 28KN

Maximum Working Height (adjustable limit): <4350mm

Working Turning Radius: 1300mm

Main Parameters for Screen Cleaning Operation

Conveyor Belt Speed: 1-1.5m/s

Conveyor Belt Swing Angle: 0-90°

Conveyor Belt Extension Range: 2m, Up/Down Swing: 30°

Screening Plate Vibration Frequency: 25-30Hz

Maximum Fitting Width of Screening Plate: 2800mm

Screening Bucket Capacity: ≤2.5m³

External Dimensions

(Total Length * Total Width * Total Height) Transport State: 6000*2800*2800mm

Wheelbase: 2600 (tracked)/4400 (high-speed)

Track Center Distance: 1570mm

Track Width: 400mm

Minimum Ground Clearance: 300mm

Technical Parameters

Applicable Railway Gauge: 1435mm (customizable upon request)

Rotation angle: 360°

Machine weight: 8500kg

Engine model: Yuchai (National IV emission standard)

Rated power: 55.8kW

Rated speed: 2200rpm

Hydraulic system working pressure: 25MPa

Travel speed (high/low speed): 15/3.5km/h

Bucket capacity: 0.5m³
