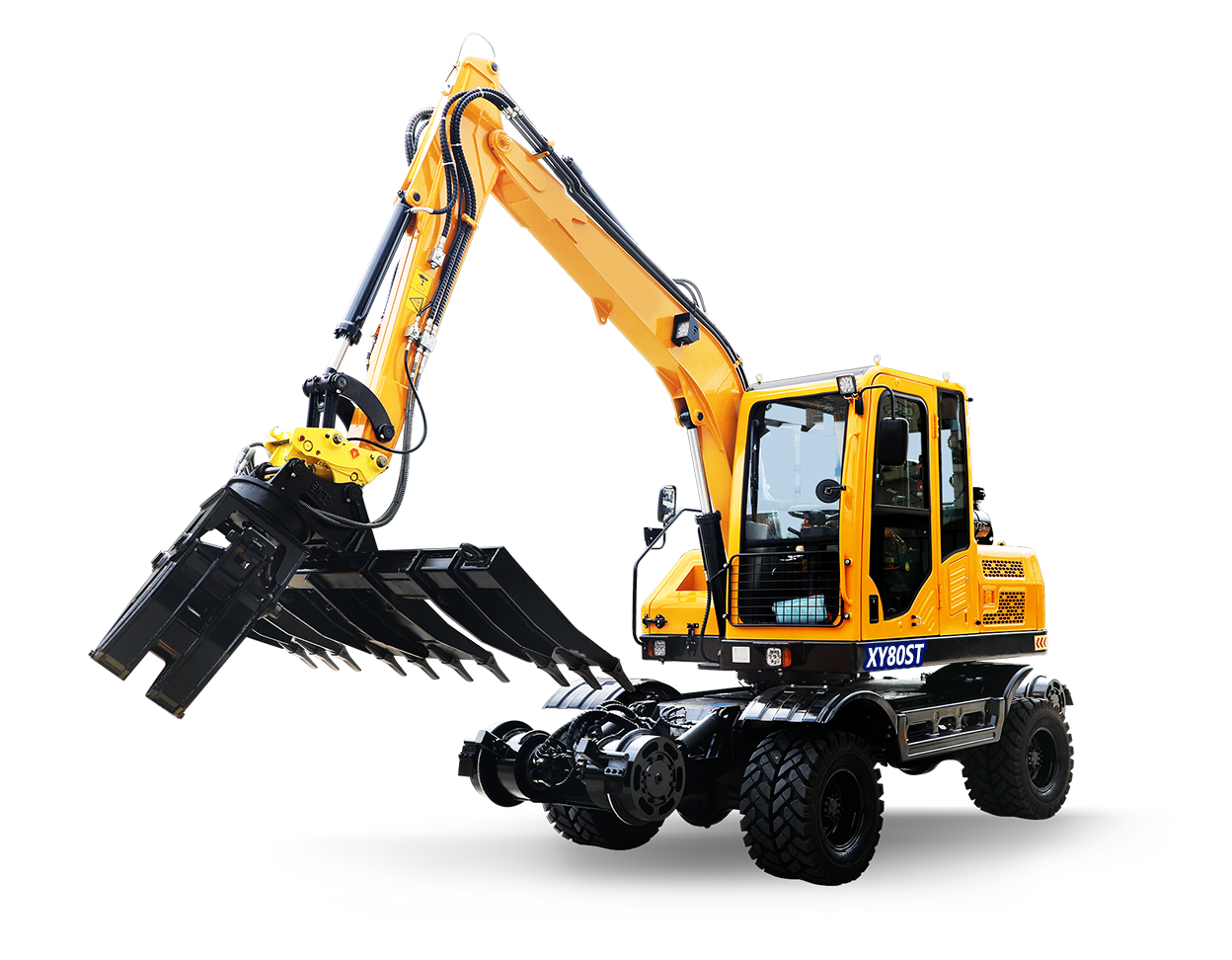

XY80ST Railway Wheel Pillow Changer

Working Range

Boom Length

3320mm

Stick Length

1850mm

Roller Changing Mechanism

Maximum Gripper Opening Width

650mm

Minimum Gripper Opening Width

200mm

Maximum Gripper Weight

800kg

Maximum Gripper Bucket Width

2800mm

Gripper Rotation Angle

360°

Overall Dimensions

Machine Weight

8000kg

(Total Length * Total Width * Total Height) in Transport State

6500 * 2200 * 2900mm

Wheelbase

2500mm

Railway Wheel Track Gauge

Customizable

Counterweight Ground Clearance

1060mm

Minimum Ground Clearance

280mm mm

Rear Turning Radius

1920mm

Technical Performance Parameters

Environmental Standard

National IV

Engine Brand

Yuchai

Rated Power

55.8kw

Rated Speed

2200r/min

Rotation Angle

360°

Hydraulic System Working Pressure

25Mpa

Hydraulic System Flow Rate

170L/min

Variable Variable Piston Pump

85ml/h

Maximum Traction Force

35kn

Maximum Driving Speed

28km/h

Gradient

58%30°

Fuel Tank Capacity

150L

Hydraulic Oil Tank Capacity

110L

Note: Product parameters are subject to the actual product. The company reserves the right of final interpretation.
