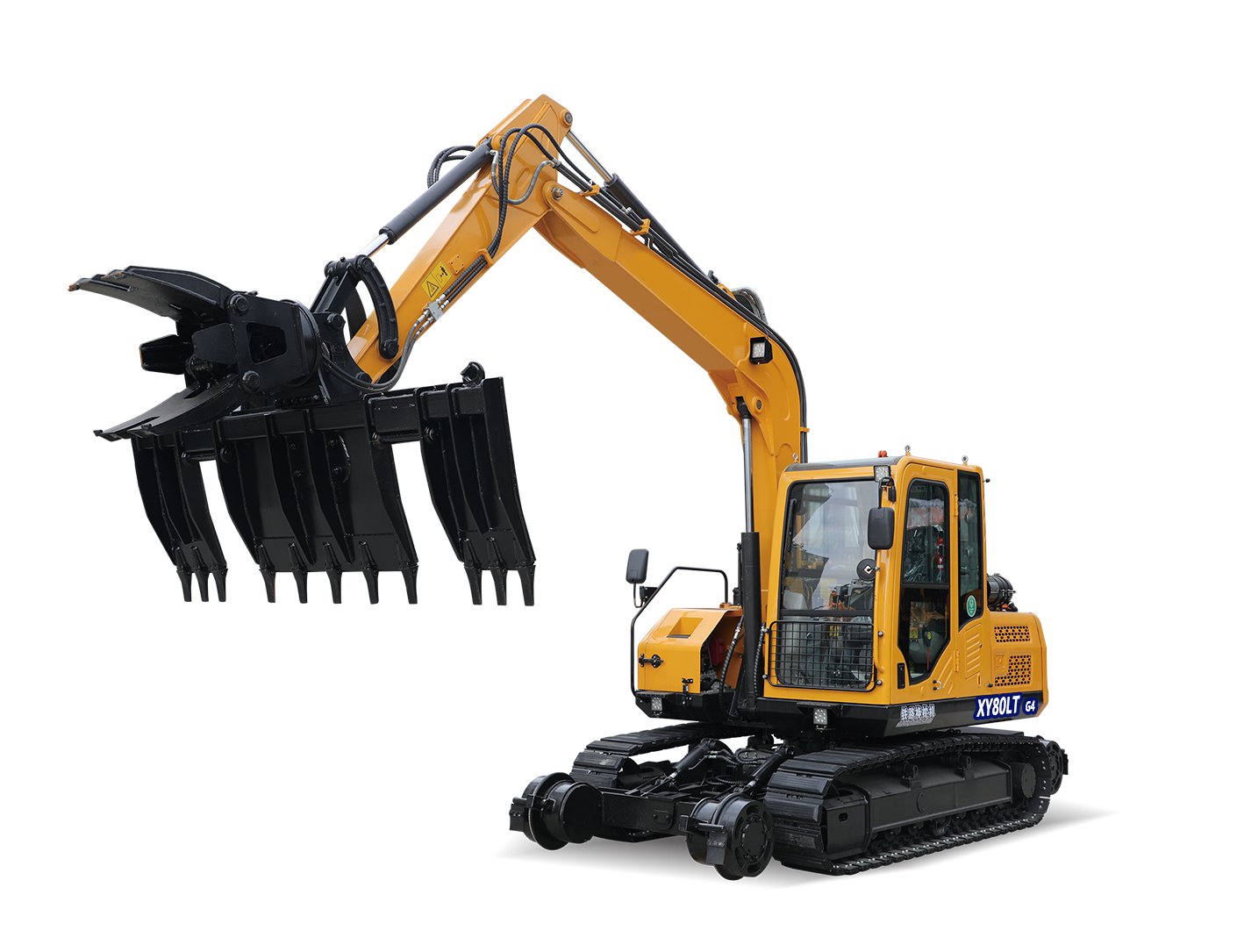

XY80LTG4 Railway Sleeper Changer

Sleeper Changing Mechanism

Maximum clamp opening width: 650mm

Minimum clamp opening width: 200mm

Maximum clamping weight: 0.5~0.6t

Maximum clamp bucket width: 2800mm (customizable)

Clamp rotation angle: 360°

External Dimensions

(Total Length * Total Width * Total Height) Transport configuration: 6100*2800*2650mm

Wheelbase: 2600mm

Track gauge: 1570mm

Slipper width: 400mm

Counterweight ground clearance: 780mm

Minimum ground clearance: 280mm

Technical Parameters

Applicable railway track gauge: Customizable upon request

Efficiency: ≥40pcs/h

Rotation angle: 360°

Total weight: 8000kg

Engine model: Yuchai (National IV emission standard)

Rated power: 55.8Kw

Rated speed: 2200~2300r/min
