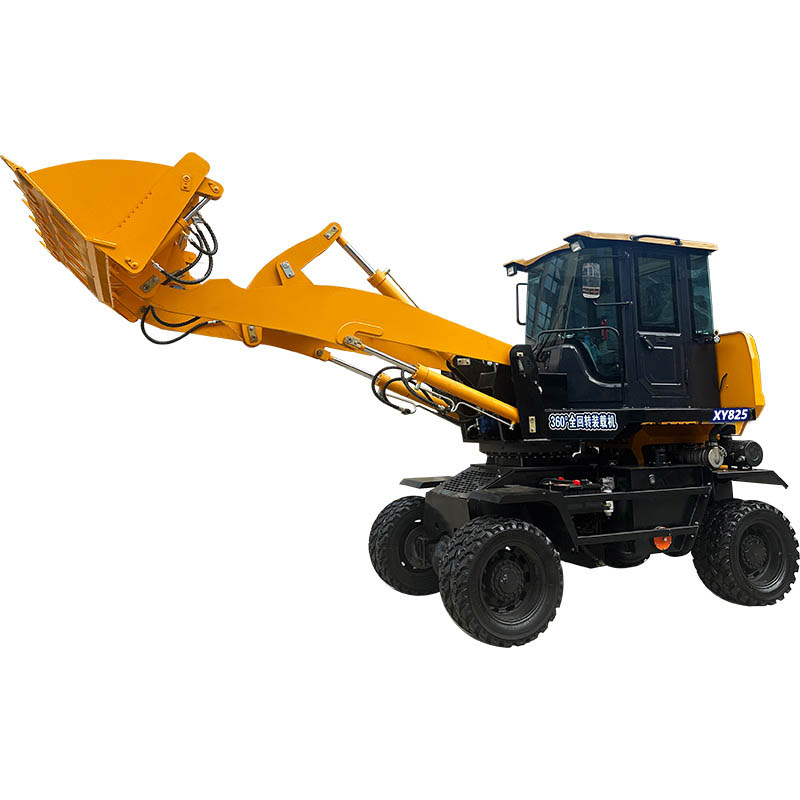

XY825 360° Full Rotation High Unloading King

XY825 High Unloading King 360° Full-Switch Loader Technical Parameters

Basic Performance

Operating Weight: 8800kg

Rated Load Capacity: 2000kg

Bucket Capacity: 1.4m³

Bucket Width: 2000mm

Maximum Unloading Height: 3590mm

Minimum Unloading Distance: 1800mm

Lifting Capacity: 2500kg

Swing Angle: 360°

Minimum Swing Radius: 2000mm

Engine

Engine Brand: YUCHAI (National IV Emission Standard)

Rated Power/Speed: 81kw/2200r

Drive System

Power Shift Gearbox: 295 Hydraulic Torque Converter

Gearbox Type: Fixed-shaft hydraulic shift gear type

Drive Axle Type: Hydraulic disc brake wheel-side reduction axle

Wheelbase: 2300mm

Track Size: 1760mm

Tire Size: 195/85-20

Hydraulic System

Rated Flow Rate: 150L

Rated Pressure: 25 MPa

Steering system flow rate: 30 L

Steering system pressure: 12 MPa

Brake system pressure: 12 MPa

Loading bucket lifting speed: 6 s

Platform rotation speed: 8 s

Overall dimensions:

Overall length: 5600 mm

Overall width: 2200 mm

Overall height: 3270 mm
