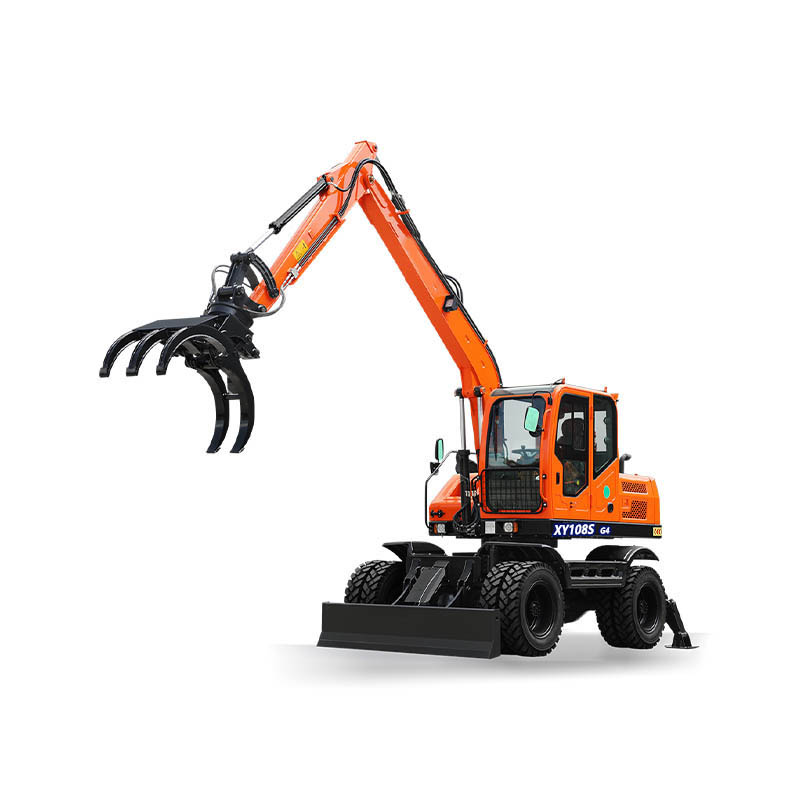

XY108SG4 Wheel Clamping Machine

Working Range

Boom Length: 4000mm

Stick Length: 2200mm

Cab Lifting Height: 800mm

Maximum Clamping Radius: 7500mm

Maximum Clamping Opening Width: 1250mm

Minimum Clamping Opening Width: 80mm

Maximum Clamping Weight: 800kg

Clamping Rotation Angle: 360°

Maximum Unloading Height: 5500mm

Rear Turning Radius: 1980mm

Overall Dimensions

(Total Length * Total Width * Total Height) Transport Configuration: 6600 * 2350 * 2950mm

Wheelbase: 2400mm

Wheel Track (Front/Rear): 1850mm/1750mm

Wheel Chassis Model: 1100-20

Counterweight Ground Clearance: 1160mm

Minimum Ground Clearance: ≥300mm

Technical Parameters

Rotation Angle: 360°

Machine Weight: 8500kg

Engine Model: Yuchai (National IV Emission Standard)

Rated Power: 55.8 kW

Rated Speed: 2200 r/min

Hydraulic System Working Pressure: 25 MPa

Hydraulic System Flow Rate: 170 L/min

Variable Displacement Piston Pump: 85 mL/r (Piston Pump)

Maximum Traction: 45 KN

Maximum Speed: 25 km/h

Grading: 58%/30

Tire Size: 8.25-16

Slewing Overload Pressure: 20 MPa

Fuel Capacity: ≥4 L/h

Fuel Tank Capacity: 130 L

Hydraulic Oil Tank Capacity: 110 L
