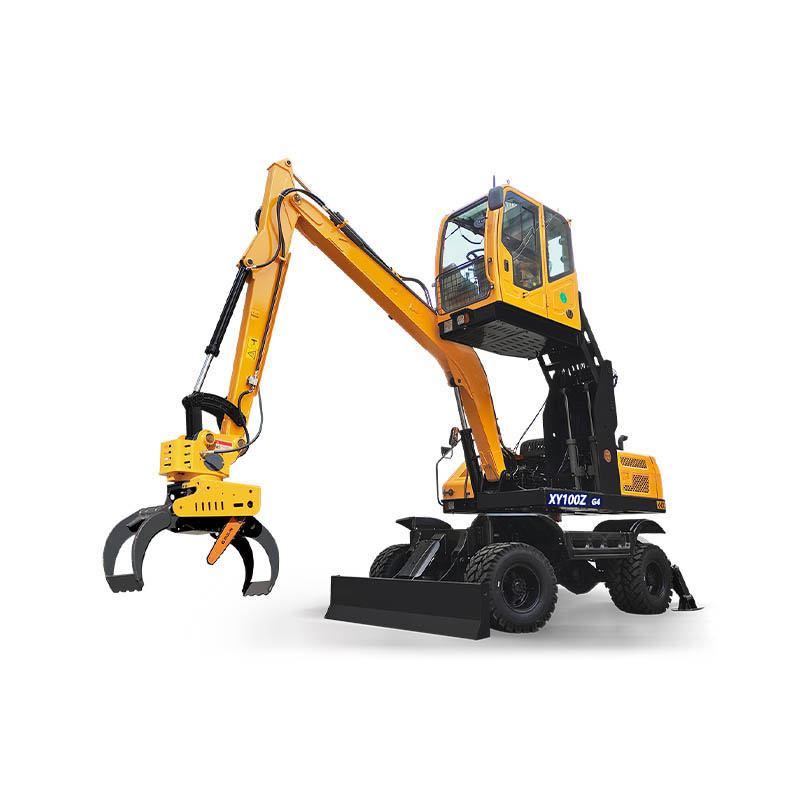

JG100ZG4 Wheel Clamping Machine

XY100ZG4 Wheel Clamping Machine Technical Parameters

Working Range

Boom Length: 4000mm

Stick Length: 2000mm

Cabin Lifting Height: 800mm

Maximum Clamping Radius: 7500mm

Maximum Clamping Opening Width: 1250mm

Minimum Clamping Opening Width: 80mm

Maximum Clamping Weight: 800kg

Clamping Rotation Angle: 360°

Maximum Unloading Height: 5500mm

Rear Turning Radius: 1980mm

Overall Dimensions

(Total Length * Total Width * Total Height) (Transportation State): 6600 * 2350 * 2950mm

Wheelbase: 2400mm

Wheel Track (Front/Rear): 1850mm/1750mm

Counterweight Ground Clearance: 1160mm

Minimum Ground Clearance: ≥300mm

Technical Performance Parameters

Rotation Angle: 360°

Machine Weight: 8500KG

Engine Model Yuchai (National IV Emission Standard)

Rated Power: 55.8KW

Rated Speed: 2200r/min

Hydraulic System Working Pressure: 25Mpa

Hydraulic System Flow Rate: 170L/min

Variable Variable Piston Pump: 85ml/r (Piston Pump)

Maximum Traction: 45KN

Maximum Speed: 25km/h

Gradient: 58%/30°

Tire Size: 8.25-16

Bucket Capacity: 0.23m³

Swing Overload Pressure: 20Mpa

Fuel Capacity: ≥4L/h

Fuel Tank Capacity: 110L
