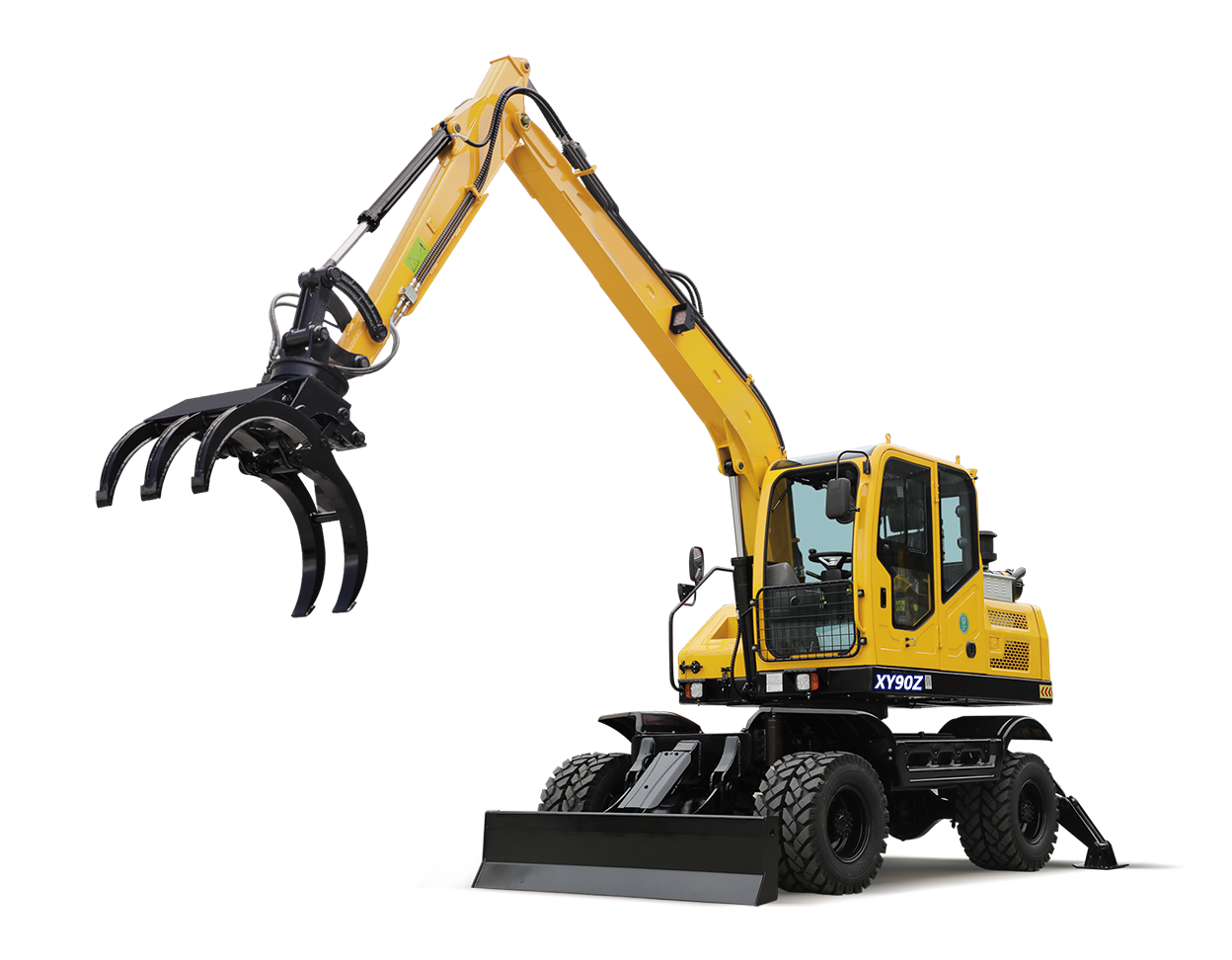

XY90Zpickup machine

Range of operation

Boom length

3475-3680mm

Arm length

2000mm

Max. clip radius

7000mm

Max. opening width of fixture

1250mm

Min. opening width of fixture

80mm

Max. radius clip weight

800kg

Rotatable angle of the fixture

360°

Max. dumping height

4650mm

Back-end radius of gyration

1980mm

Dimensions

Machine weight

7000kg

(Length*width*height)Transport dimensions

6600*2350*2950mm

Axle base

2400mm

Track width  (front/rear)

1660mm/1580mm

Ground clearance of counterweight

1160mm

Min. ground clearance

≥300mm

Tech performance and specification

Environmental protection standards

国IV

Engine brand

YUCHAI

Rated power

55.8KW

Rated speed

2200r/min

Angle of rotation

360°

Hydraulic system working pressure

25Mpa

Gear pump

2*25ml/r

Grapple swing speed

12r/min

Walking speed

25km/h

Grade climbing ability

58%/30°

Swing overload pressure

20Mpa

Full circle swinging time

10r/min

Fuel tank capacity

130L

Hydraulic oil tank capacity

110L
